AQROS-Scan Eye+

High precision x portability x multifunction x high speed

“All-in-one scanner” that combines everything

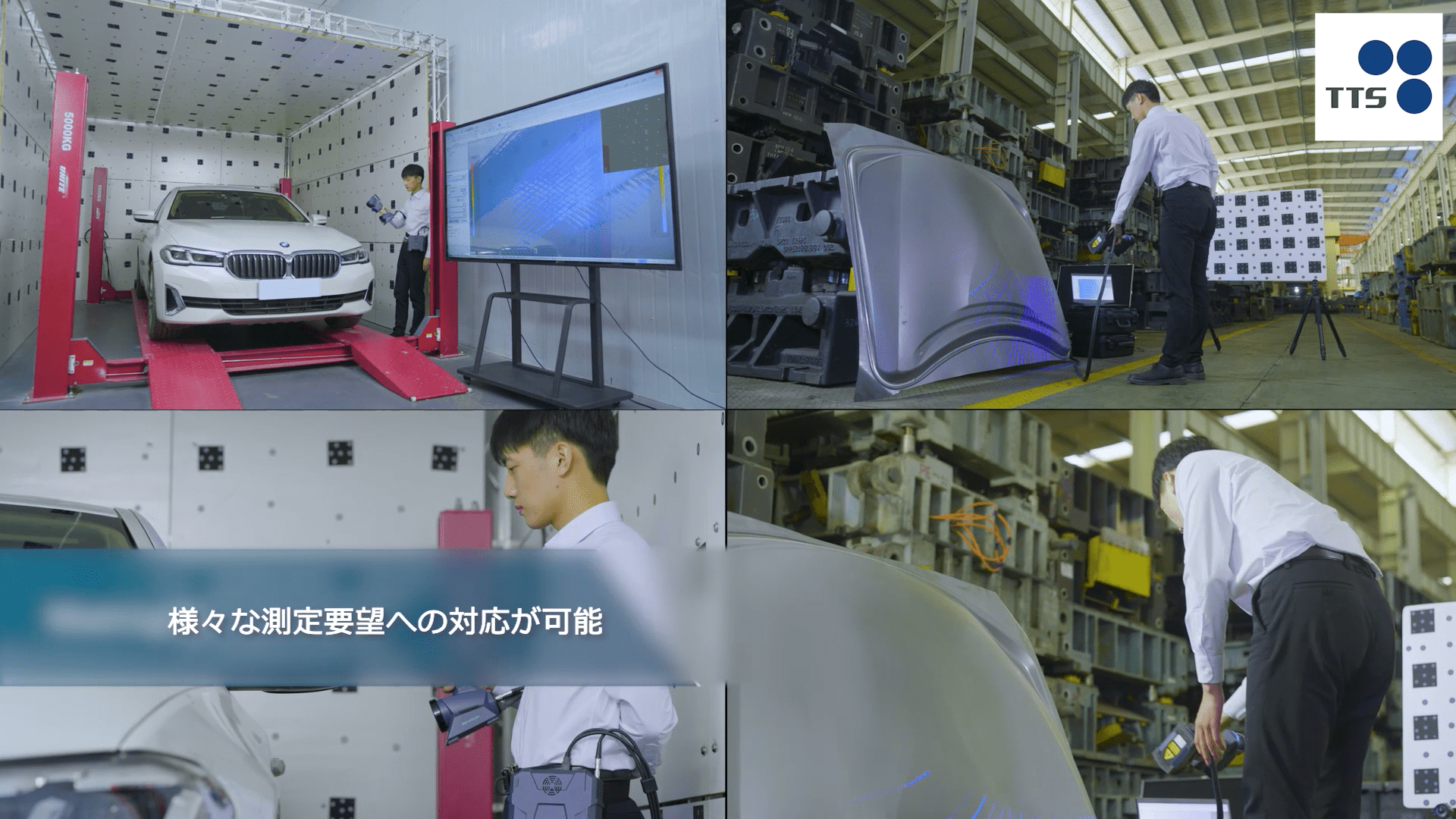

AQROS-Scan, an industrial 3D scanner, realizes innovative portability and multifunctional measurement.

High-precision and high-speed 3D measurement can be realized with a handy type.

We also offer high-end models that do not require the installation of a “target marker” on the object to be measured, which was a weak point of the conventional handy type.


Description Model

AQROS-Scan Eye+

Measuring Mode Standard Fine
Measuring Speed 1,350,000 Point/Sec 600,000 Point/Sec
Measuring Area/1 shot 600×550 mm. (max.)
Laser Line 22-line laser + single laser + Extra 5 Blue Laser
Laser Class Class 2
Point Distance 0.02 mm.
Accuracy 0.02 mm. 0.01 mm.
Volumetric accuracy 0.015 mm+0.035 mm/m
Volumetric accuracy (Maker free) 0.050 mm + 0.020 mm/m
Volumetric accuracy (Photogrammetry) 0.015 mm+0.020 mm/m
Hole measuring accuracy 0.03mm.
Hole Volumetric accuracy 0.025 mm+0.035 mm/m
Hole Volumetric accuracy
(Marker free)
0.060 mm+0.020 mm/m
Hole Volumetric accuracy (Photogrammetry) 0.025 mm+0.020 mm/m
Focal length 350 mm. 150 mm.
Measurement depth 450 mm. 150 mm.
Maximum measurement depth

(Single mode)

550 mm.
Weight 1.3 Kg.
Dimension 300x130x70 mm.
Operating temperature -20~40℃
Operating humidity
(No condensation)
