AQROS-Scan, an industrial 3D scanner, realizes innovative portability and multifunctional measurement.

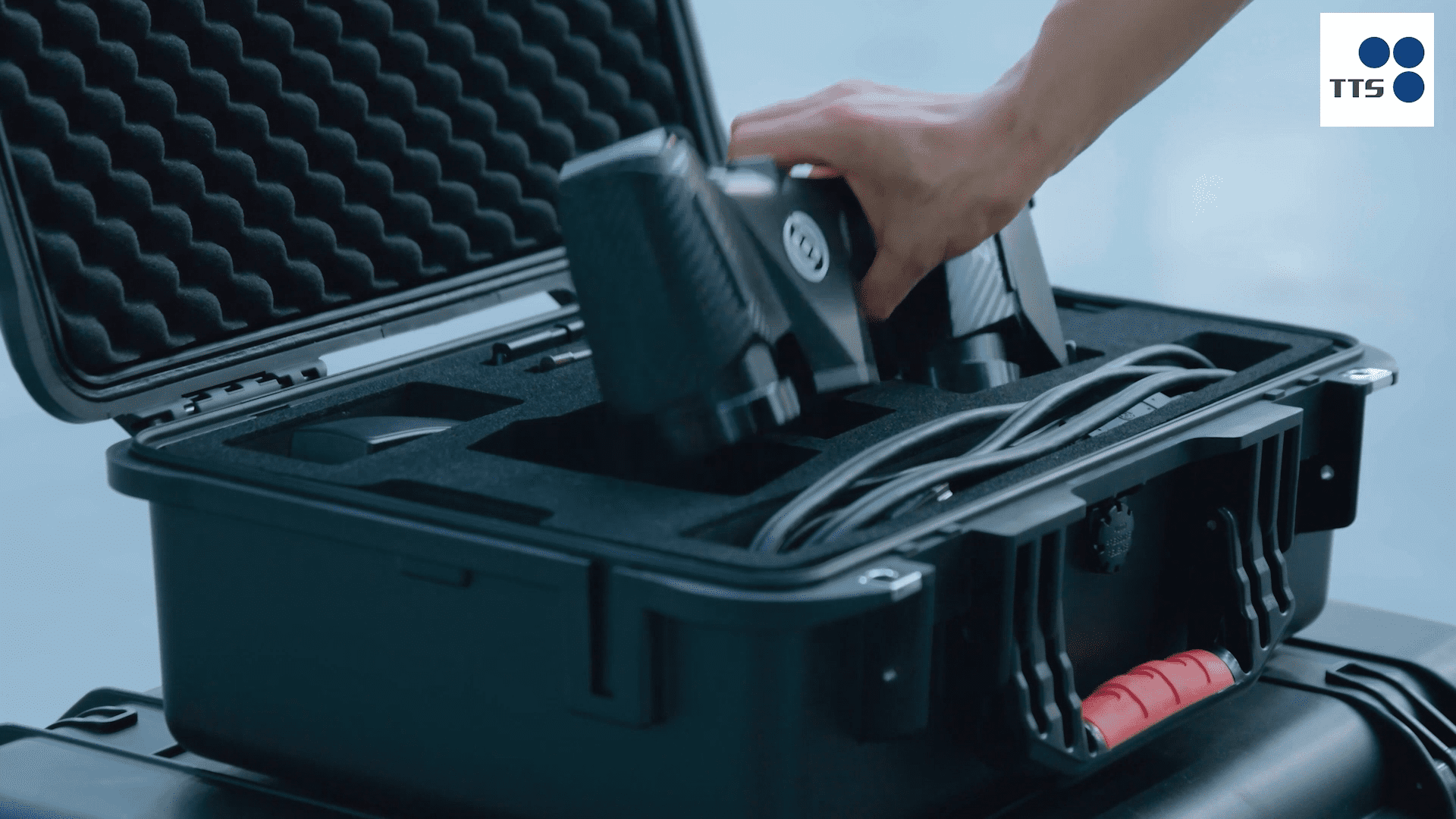

High-precision and high-speed 3D measurement can be realized with a handy type.
We also offer high-end models that do not require the installation of a “target marker” on the object to be measured, which was a weak point of the conventional handy type.
|
Description Model |
AQROS-Scan U |
|
| Measuring Mode | Standard | Fine |
| Measuring Speed | 1,600,000 Point/Sec | 900,000 Point/Sec |
| Measuring Area/1 shot | 600×550 mm. (max.) | |
| Laser Line | 26-line laser + single laser + Extra 14 Blue Laser | |
| Laser Class | Class 2 | |
| Point Distance | 0.01 mm. | |
| Accuracy | 0.02 mm. | 0.01 mm. |
| Volumetric accuracy | 0.015 mm+0.030 mm/m | |
| Volumetric accuracy (Maker free) | – | |
| Volumetric accuracy (Photogrammetry) | – | |

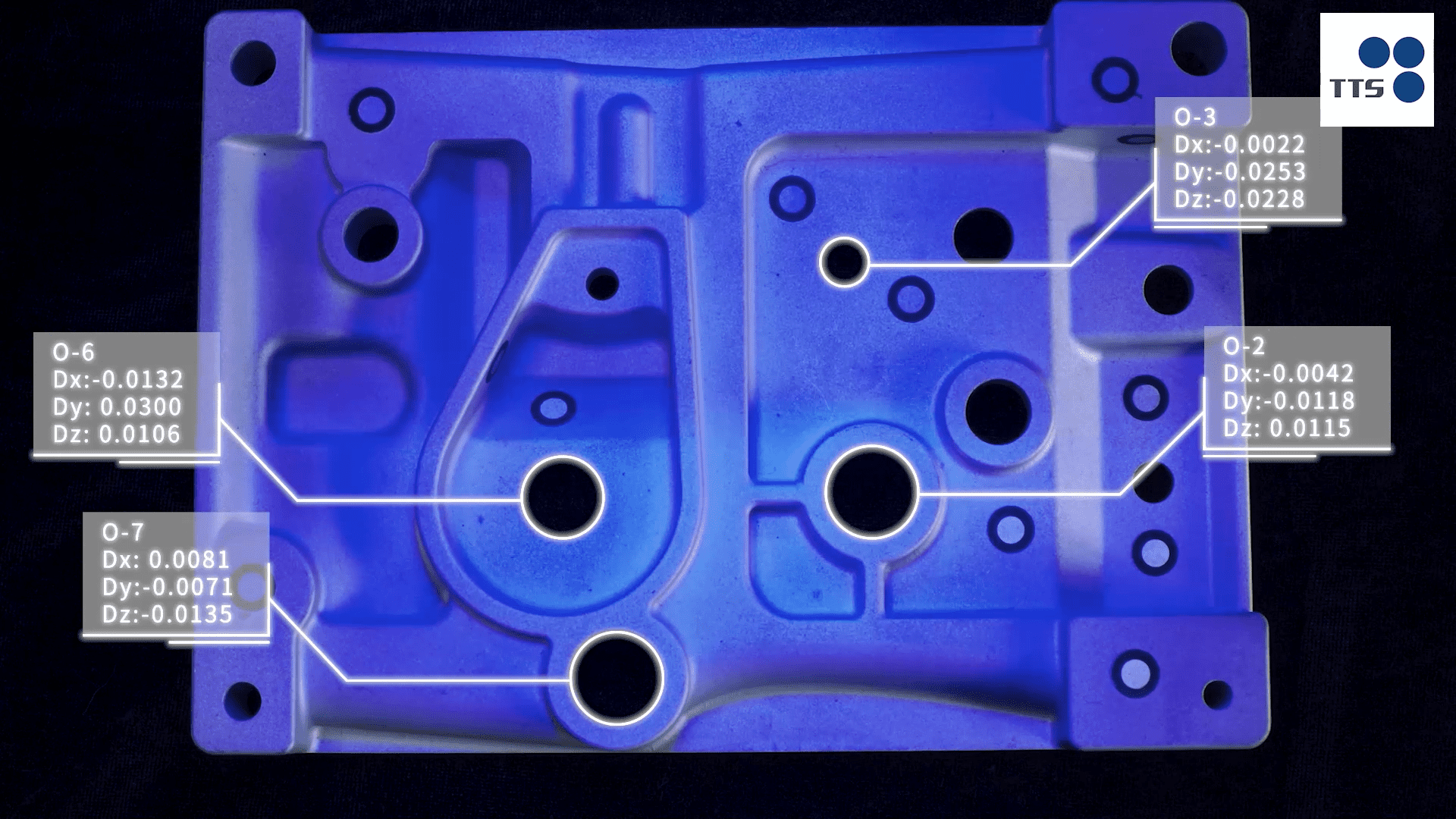

| Hole measuring accuracy | 0.02 | |
| Hole Volumetric accuracy | 0.015 mm+0.030 mm/m | |
| Hole Volumetric accuracy (Marker free) |
– | |
| Hole Volumetric accuracy (Photogrammetry) | – | |
| Focal length | 325 mm. | 200 mm. |
| Measurement depth | 450 mm. | 150 mm. |
| Maximum measurement depth
(Single mode) |
550 mm. | |
| Weight | 1.0 Kg. | |
| Dimension | 295x135x75 mm. | |
| Operating temperature | -20～40℃ | |
| Operating humidity (No condensation) |
10～90% | |
