Product Inspection Tool using Point Cloud Data measured by Non-contact digitizers and 3D-CAD Data

spGauge is to detect Errors of Mold shape, Product shape from Point Cloud Data and 3D-CAD Data. Furthermore spGauge can evaluate their Errors quantitatively.



Detection of Error Part quickly

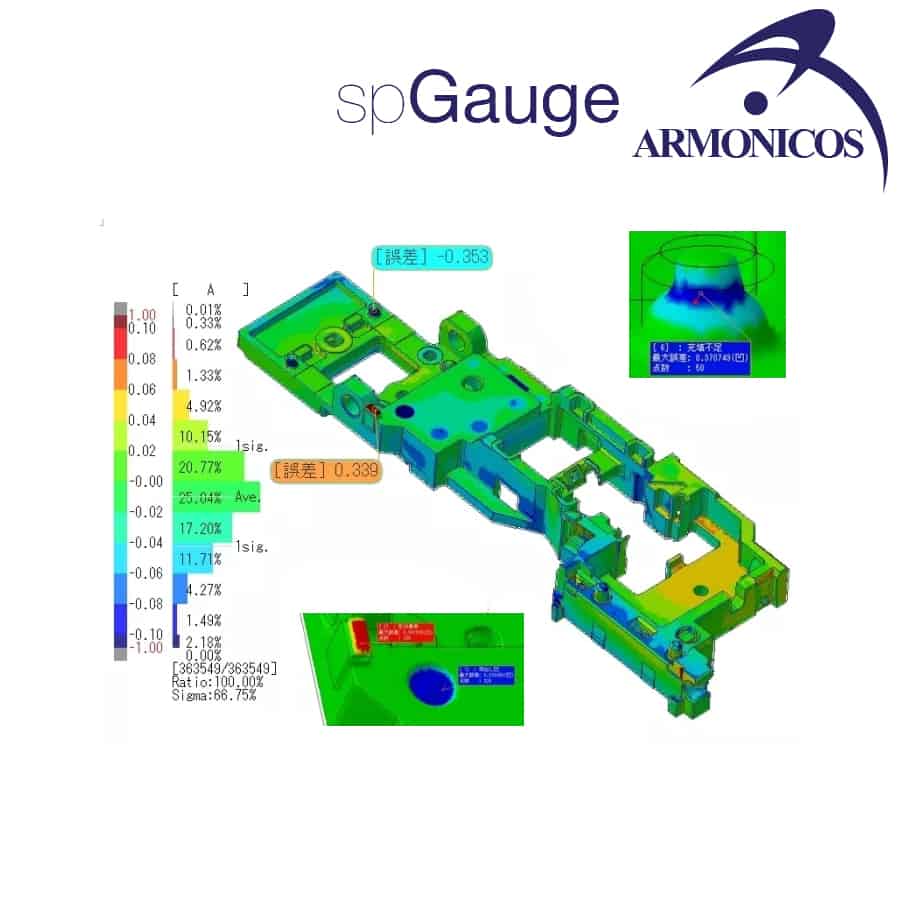

spGauge compares Point Cloud Data and 3D CAD Data, and changes color of the error part in Point Cloud Data. So it is possible to detect them quickly.

Appropriate Mold Modification


spGauge detects the parts with Filling Insufficiency, and it is possible to judge changing the molding conditions.

By using Point Data measured by contact-based probing devices, it is judged as “A positional dislocation of the Boss Center”.

On the other hand, by using Point Cloud Data measured by Non-contact Digitizer, it is possible to detect as “Leaning Boss”.

As a result, the times of modification is reduced.

Confirmation of Thickness & Spring-Back variation without cutting


It is possible to confirm Thickness by Error Map without cutting a Plastic Product, a Cast Product, and a Forged Product.

And On a Press Product, it is possible to confirm the variation of Spring-Back and Warp.

Technical Data

System Requirements

OS Windows 10 Pro (64bit)
Windows 8.1 Pro (64bit)

*Floating License Server:
Windows 10 Pro (64bit)
Windows 8.1 Pro (64bit)
Windows Server 2016 Standard (64bit)
Windows Server 2012 R2 Standard (64bit)

CPU Intel Core i7 or more recommended
Memory 8 GB or more recommended
HDD At least 10 GB
Resolution 1280 x 1024 or more recommended
Graphic board OpenGL board

NVIDIA Quadro Series recommended

Operation Condition USB port (for license)
DVD-ROM drive (for installation)
