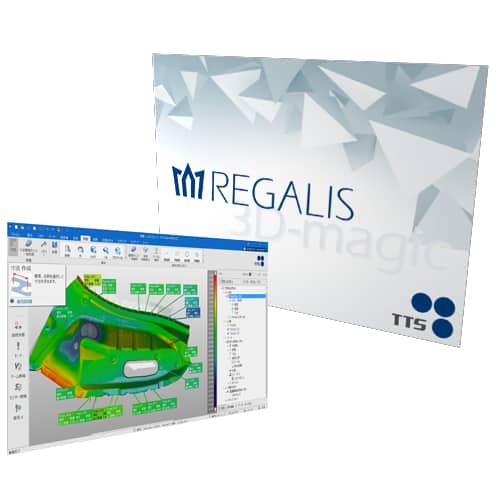

3D Magic Regalis

โปรแกรมที่ใช้ในการเทียบและวิเคราะห์ข้อมูล CAD และ ข้อมูลที่ได้จากการวัด โดยแสดงผลออกมาให้เห็นทันทีว่า บริเวณที่ต้องการตรวจสอบและวิเคราะห์ของชิ้นงานนั้นๆ OK หรือ NG เป็นโปรแกรมที่ใช้งานง่าย ผู้ปฏิบัติงานระดับเริ่มต้นก็สามารถใช้งานได้

Loading...

คำอธิบาย

  • Multi-assembly support (sub-assembly support)
  • 3D CAD and measurement data shape analysis (color-mapping)
  • Best fit (specify conditions/3-2-1/factor reference alignment)
  • Fit on (best fit without engaging partner shapes)
  • Management point creation, measurement and analysis
  • Cross-section inspection, cross-section range specification
  • Interference analysis (panel analysis by inputting sheet thickness)
  • Auto-meshing (polygonization while non-contact measuring)
  • JIS standard based GD&T (geometric dimension tolerance) analysis function
  • Gap & Flash inspection
  • Analysis for level difference between patches
  • Report creation (output to a proprietary format in Excel)
  • Free-of-charge viewer

ข้อมูลทางเทคนิค

OS

  • Microsoft Windows 7 SP1 64bit or higher
  • Microsoft Windows 10 version 1703 (Creators Update) 64bit or higher

Japanese/English version Microsoft .NET 4.7 or higher require

Hardware

Minimum spec Recommended spec
CPU Intel / AMD dual core Intel / AMD quad core
Main memory *1 8GB 16GB
HDD free space*1 4GB or more 8GB or more
Graphics card*2 NVIDIA GeForce/Quadro series
(On-board graphics memory 2 GB or more)
NVIDIA Quadro series
(On-board graphics memory 8 GB or more)
Microsoft Excel Microsoft Excel 2010 or later Microsoft Excel 2016
  1. ต้องการพื้นที่ Hard Drive ที่เหมาะสมกับงานที่มีอยู่
  2. Requires the latest graphic card. Please obtain information from the NVIDIA homepage.
    There is no guarantee that Intel and AMD manufactured graphics cards will work.
