AS1 Laser Scanner

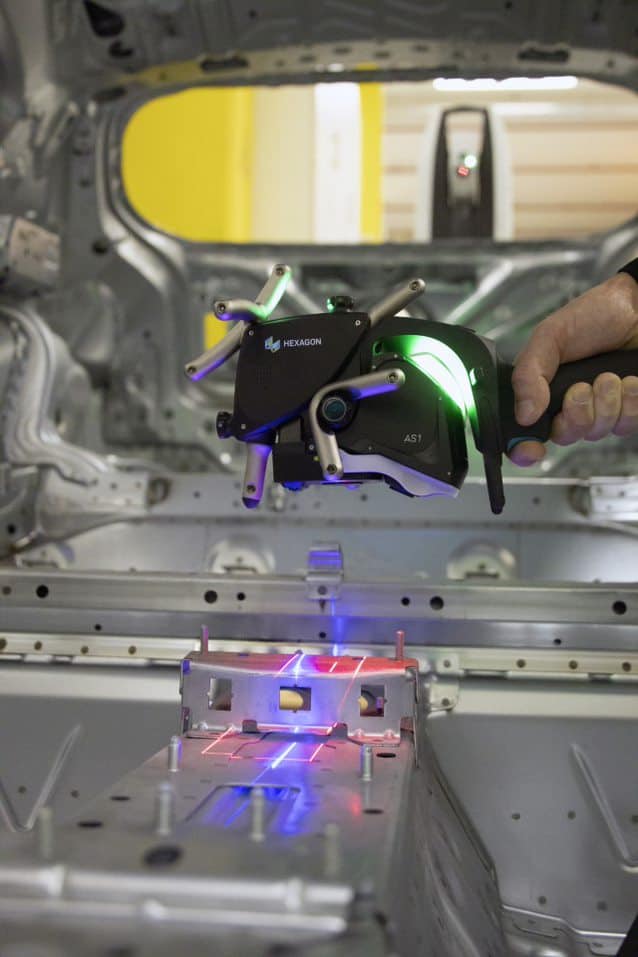

The Leica Absolute Scanner AS1 can measure up to 60m in diameter. combine with the Leica Laser Tracker AT960. It captures up to 1.2 million data points per second at 300Hz, and innovative SHINE (Systematic High Intelligence Noise Elimination) technology enables productivity gains at maximum laser widths and frame rates. Almost all surface shapes can be measured without performance loss on any material such as matte black to highly reflective carbon fiber or on highly glossy workpieces. Furthermore, all automatic measurements are possible by combining robots, processing machines, AGVs, etc.



Ultra-high-speed sensor
300Hz (line frequency) can acquire up to 1.2 million data points per second.
Evolution of measurement on the glossy surface
High-Intelligence Noise technology can measure almost any surface shape, from glossy black to matte black and carbon fiber.

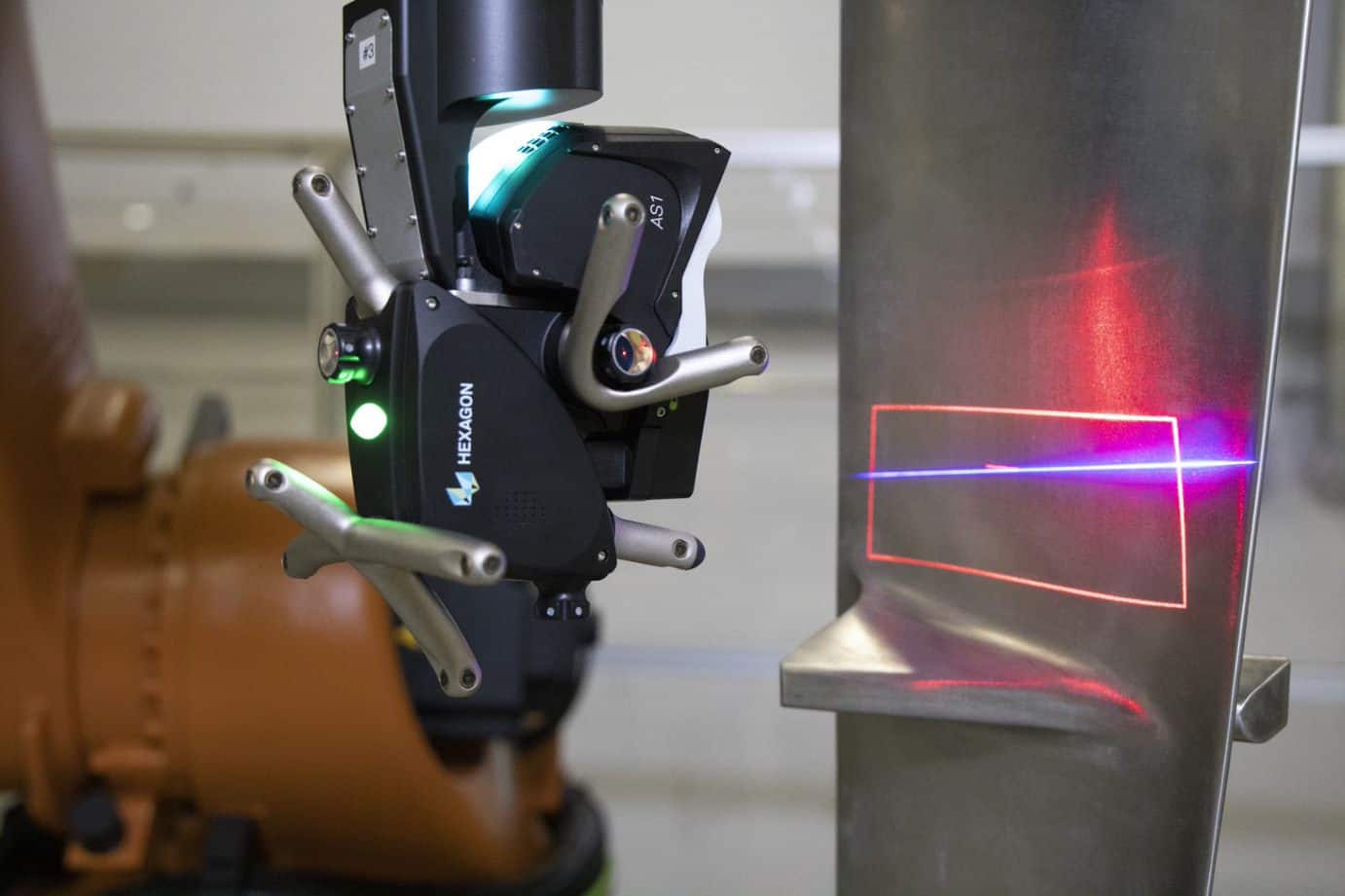

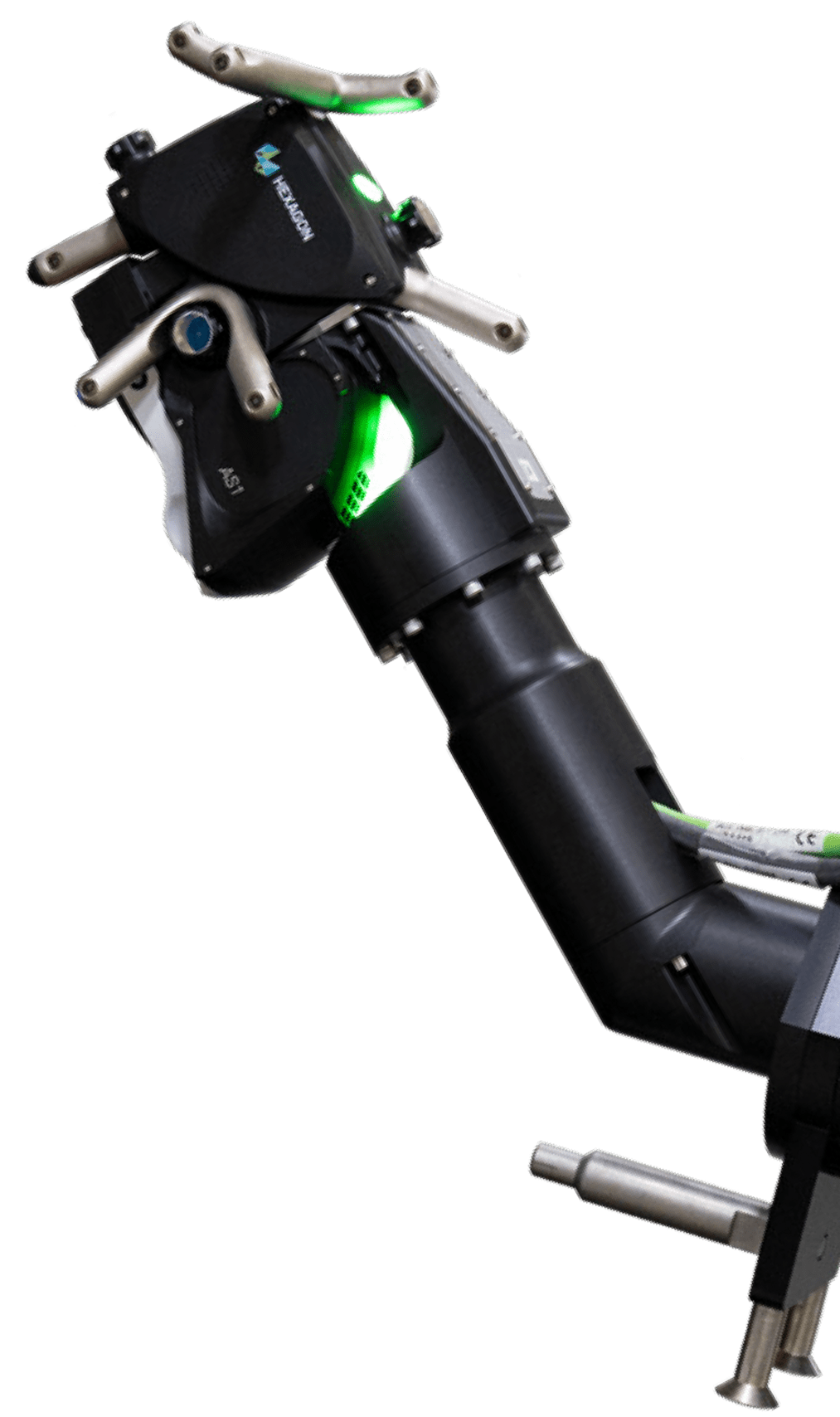

AS1 is available for automatic measurement. It is possible to measure twice as speedy as the conventional automatic measurement of T-Scan.
High-precision non-contact measurement
The combination of high precision tracker and the AS1 scanner enables non-contact measurement accuracy within just 50μ (for AT960XR) at distances up to 30m.
Wide range measurement
Measurement is possible within a radius of up to 30 m from the tracker (for AT960XR).
Multi-range measurement
With the combination of each tracker model and AS1, scanning measurement (manual/automatic) of various measurement ranges is possible. (SR; ~ 5m, MR; ~ 10m, LR; ~ 20m, XR; ~ 30m) Also, using a high-precision reflector, full-range measurement up to 80m is possible, and it can select suitable combinations for any application.
Intelligent Zoom
The mini-Vario zoom camera built into the tracker AT960 series accurately calculates the tilt of various 6DoF devices such as AS1. Together with the laser tracker’s original high-precision distance measurement, it offers highly accurate, high-speed measurement in any diverse application.


Weight 1190 g
Sphere distance accuracy Typical ±25 µm
MPE ±50 µm
Laser class 2M
Stand off 165 mm±50 mm
Scanning width 150 mm(Max.)
Lines per sec. 300 lines
Minimum point distance 0.037 mm(at stand off)
