VSC-3XXX Series

ระบบการวัดแบบ Full Scale

Loading...

คำอธิบาย

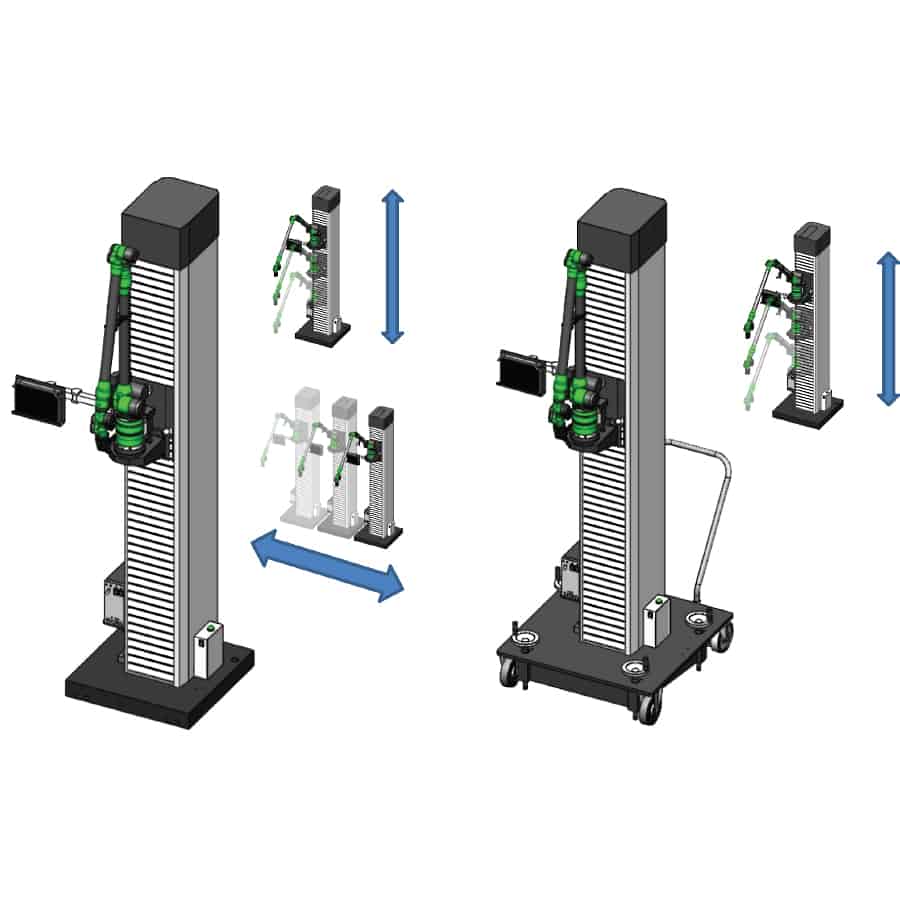

VSC Series Base Drive Type


Base Drive System เป็นระบบที่กว้างเหมาะสำหรับการวัดตัวถังรถยนต์, ชิ้นส่วนขึ้นรูปขนาดใหญ่ และอุปกรณ์ที่มีขนาดใหญ่เป็นต้น ซึ่งสามารถวัดพื้นที่กว้างได้ในคราวเดียว ไม่ต้องถ่ายโอนพิกัด โดยตัวเลือกในการทำงานต่างๆสามารถปรับแต่งให้ตรงตามการใช้งานจริงได้

VSC Series Vertical lifting and moving caster base


ฐานล้อยกและเคลื่อนย้ายในแนวตั้ง เป็นระบบที่มีฟังก์ชั่นในการยกแนวตั้ง ซึ่งช่วยให้สามารถวัดจากล่างขึ้นบนได้

ข้อมูลทางเทคนิค

Model VSC3626MII VSC3636II
Probe  maximum movement range x 3500mm + frame distance
y 1750mm from the front of column
z 3770mm
Vertical movement amout 1500mm
Arm accuracy Repeatability 2σ : 0.03mm
Measurement Accuracy 2σ : 0.04mm
Horizontal movement accuracy Please check sperately as it depends on the amount of movement
Power supply AC 100-240V 50-60Hz ,120VA (not iclude PC)
Compatible model VAR600MII
